Sanitary Drainage Plant and Its Expansions at El-Tall El-Kebeer City

Sanitary Drainage Plant and Its Expansions at El-Tall El-Kebeer City – Ismailia Governorate

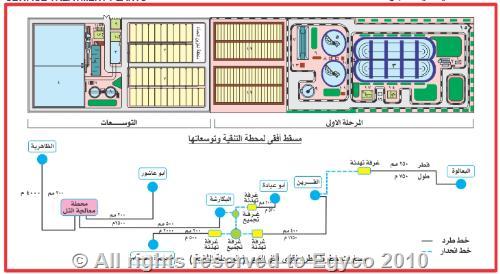

Purification plant (STAGE I)

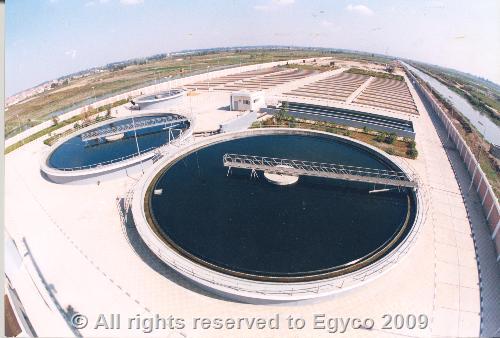

Sterilization , Sludge thickening & Final basins

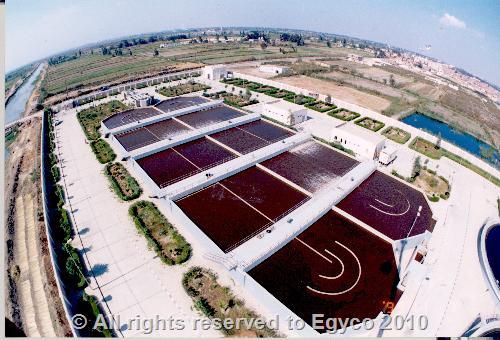

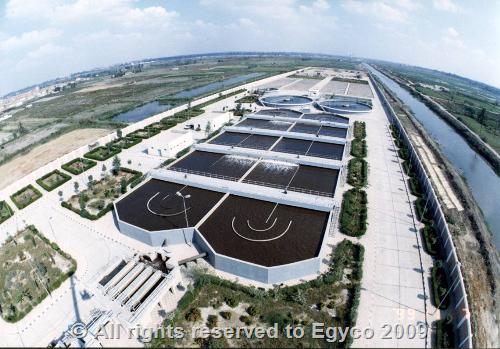

Oxidation channels

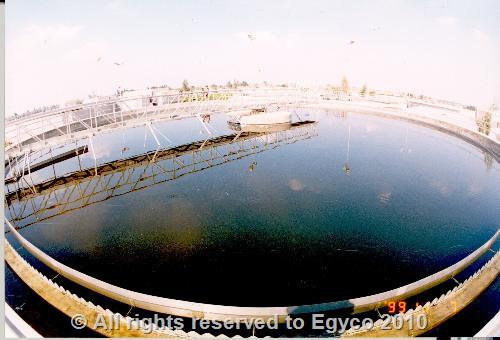

Final sedimentation basins

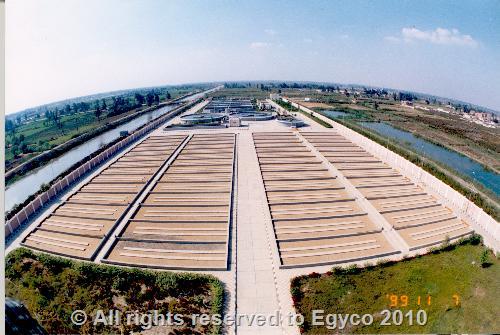

Drying beds

Owner	:	National Organization for Potable Water & Sanitary Drainage
Starting Date	:	First Stage :1991 Expansions:2004
Value of Contract	:	146 millions L.E.
Description	:	• STAGE I: - PURIFICATION PLANT: built on an area of 12 fed., and works by surface ventilation horizontal mechanical method with production capacity of 10000 m3 / day. - PUMPING STATIONS: (1) main station + (3) sub-stations. - FORCE MAIN: Cast iron pipes of diameters (300: 600 mm) & length (3.5 km). - GRAVITY NETWORKS: Glazed clay pipes of diameters (8: 36 ") & length (30 km). - CROSSINGS : (2) Hydraulic power crossings, diameters : 1800 & 2250 mm. • STAGE II: - EXPANSIONS OF PURIFICATION PLANT: to raise the capacity from 10 thousand to 20 thousand m3 / day . - PUMPING STATIONS: (3) main station + (4) sub-station. - FORCE MAIN: HDPE pipes of diameters (200: 500 mm) & length of 12 km. - GRAVITY NETWORKS: plastic pipes of diameters (6, 8,10 ") & length about 37 km.
